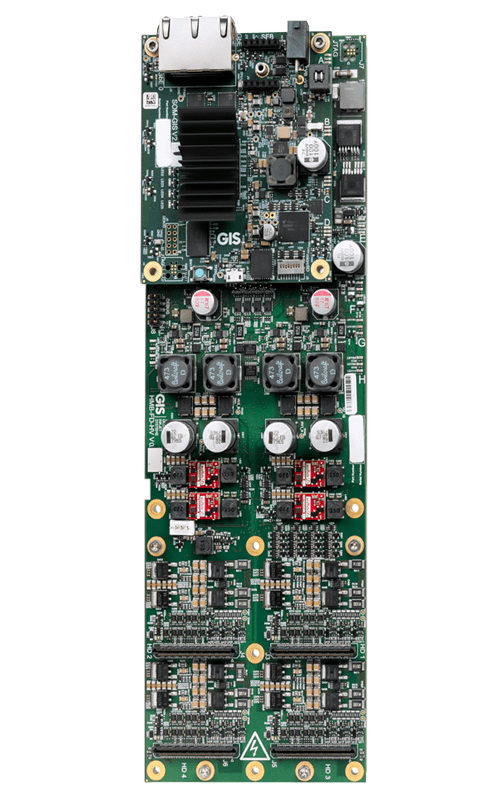

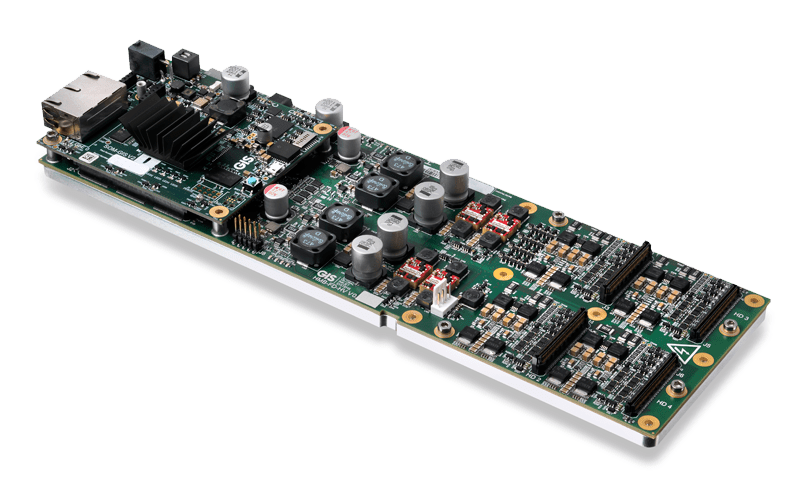

Printhead Manager - PHM-FD-HV
The PHM-FD-HV is the latest drive electronics board for the Fujifilm Dimatix Starfire SG600 and SG1024 family of printheads, using industry standard Ethernet connectivity.
Printhead Manufacturer
Fujifilm Dimatix
Printhead Family
Starfire SG600/SG1024
Overview
Enabling full binary and greyscale capabilities, the PHM-FD-HV integrates datapath buffering, printhead management and high-precision fire waveform generation, all accessed via Gigabit Ethernet.
Printhead Variants Supported
StarFire SG600, StarFire SG1024
Number of Printheads Driven from One Module
4
Supported Printhead Functions
| Binary and Greyscale Printing | |
| Thermal Management and Control | |
| Continuous Printhead Status Monitoring | |
| Auto Printhead Shutdown | |
| High Fidelity Waveform Design and Generation |
Integration
| Length | 300mm |
| Width | 96mm |
| Depth | 38mm |
| Weight | 544g |
| Connectivity | Ethernet |
| Single Power Supply and Standard Connectors | |
| Multiple Cooling Options | |
| PC to PHM Connection Length | up to 100m |
| PHM to Printhead Connection Length | 400mm |
Connectivity
| Power Supply | |
| Number of Connectors Required to Drive Printhead | 6 |
Drive Electronics Functions
| Buffered and Streamed Print | |
| Encoder and Product Detect Monitoring | |
| Auto Electronics Shutdown | |
| Remote Updates | |
| Diagnostic LEDs | |
| Continuous Electronics Status Monitoring | |
| Reverse Power Polarity Detection and Protection | |
| Over Voltage Protection |
Software Interface Options
Advanced Features
The Printhead Manager for Fujifilm Dimatix printheads (PHM-FD-HV) from GIS is your single solution for scanning and single-pass applications. The PHM-FD-HV supports the SG600 and SG1024 printheads from Fujifilm Dimatix, based on the latest generation of GIS Ethernet products
