Printhead Manager Epson D3000
Printhead Manufacturer
Epson
Printhead Family
D3000-A1R
Overview

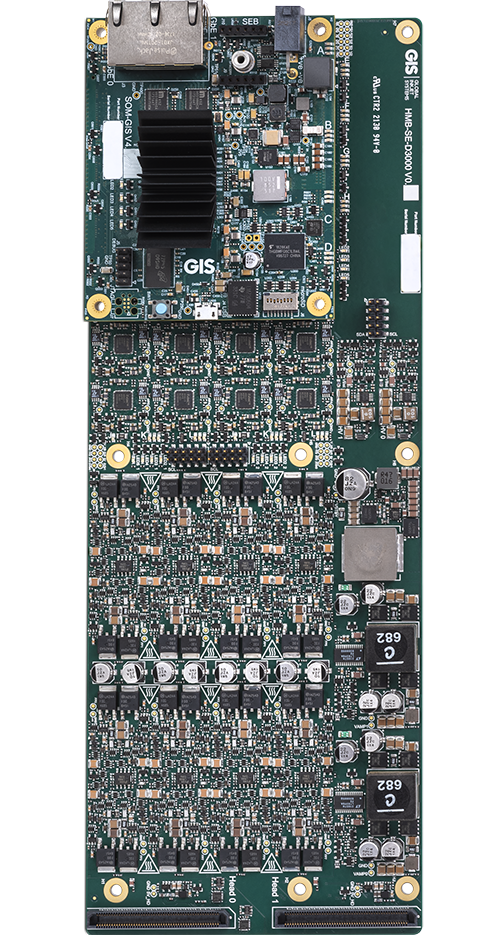

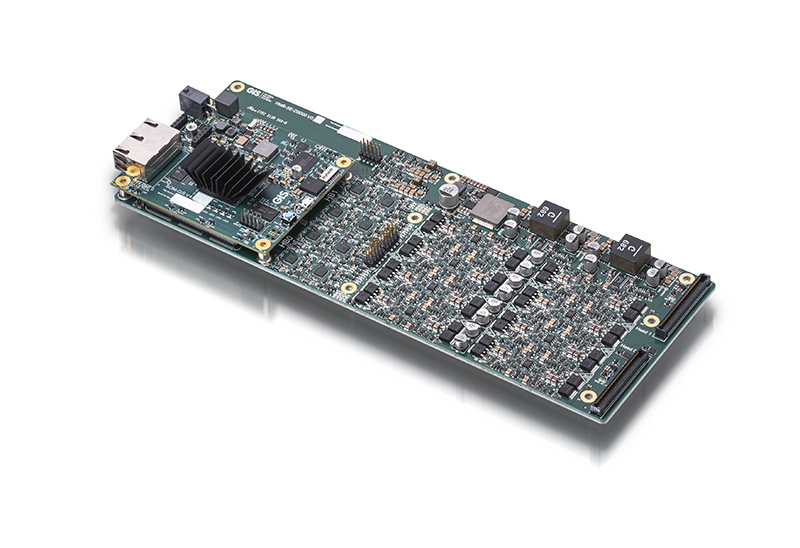

The Printhead Manager SE-D3000 is GIS’s latest drive electronics for Epson PrecisionCore D3000-A1R printheads, using industry-standard Ethernet connectivity. Supports up to two printheads.
Enabling full binary and greyscale operation, SE-D3000 integrates datapath buffering, printhead management and high-precision firing waveform generation, all accessed via Gigabit Ethernet.
Printhead Variants Supported
D3000-A1R
GIS Legacy Identifier & Product Code
1200479 - PHM-SE-D3000
Supported Printhead Functions
| Binary and Greyscale Printing | |
| Continuous Printhead Status Monitoring | |
| EEPROM Access | |
| Auto Printhead Shutdown | |
| High Fidelity Waveform Design and Generation |
HMB Integration
| Length | 300mm |
| Width | 110mm |
| Depth | 31mm |
| Weight | 487g |
| PC to HMB Connection Length | upto 100m |
| HMB to Printhead Connection Length | 400mm |
| Connectivity | Ethernet |
| Single Power Supply and Standard Connectors | |
| Multiple Cooling Options |
Drive Electronics Functions
| Buffered and Streamed Print | |
| Encoder and Product Detect Monitoring | |
| Auto Electronics Shutdown | |
| Remote Updates | |
| Diagnostic LEDs | |
| Continuous Electronics Status Monitoring | |
| Reverse Power Polarity Detection and Protection | |
| Over Voltage Protection |
S/W Interface Options to HMB
| GIS Atlas® Server for Scalable Print Systems |
Download Datasheets
Printhead Manager Epson D3000 for D3000-A1R
