Head Personality Board S-Class
Printhead Manufacturer
Fujifilm Dimatix
Printhead Family
S-Class
Overview

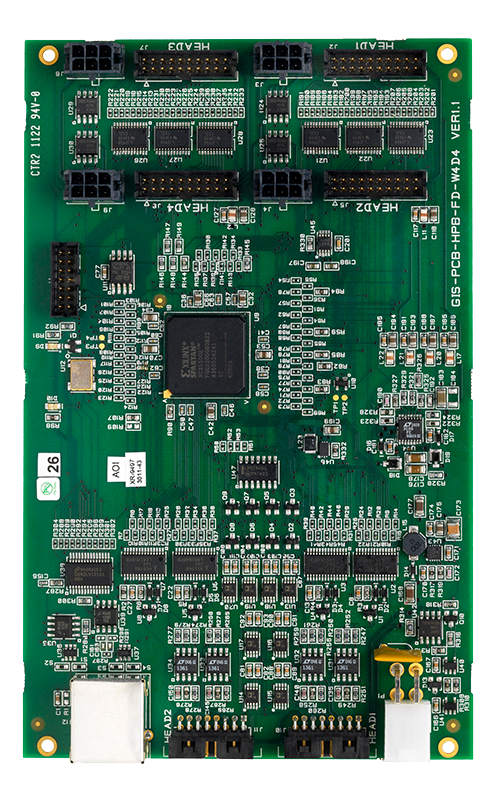

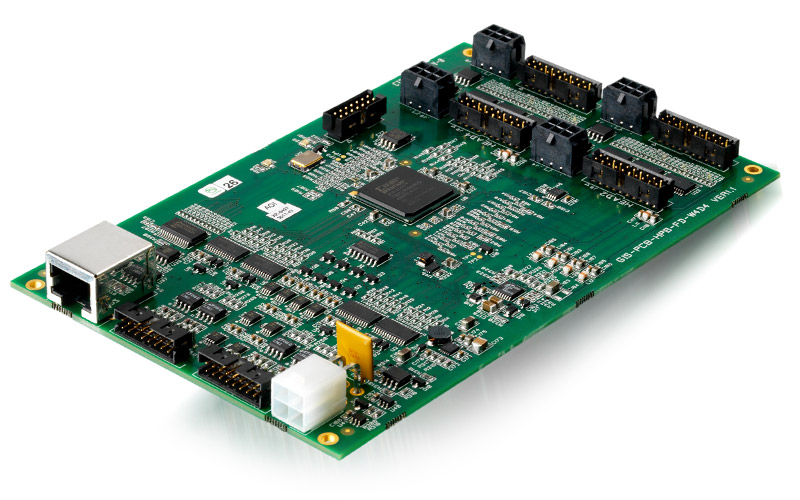

The S-Class Head Personality Board from GIS provides the communications link between the GIS Print Manager Board (C2 or C8) and the S-Class printhead. Supports up to eight printheads.
Printhead Variants Supported
SE-128 AA, SM-128 AA, SL-128 AA
GIS Legacy Identifier & Product Code
HPB-S-CLASS
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 160mm |
| Width | 100mm |
| Depth | 14mm |
| Weight | 95g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 3 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Advanced Features
The Head Personality Board S-Class will allow grey-scale, multidrop or binary printing at full-speed. It will generate up to four independent waveforms. Customers will be able to shape each waveform with accurate slew-rate and amplitude control in very fine time-slices throughout each pulse, making it ideal for graphics, ink development, and materials deposition applications. Temperature monitoring is incorporated, as is thermostatic control over heating elements in up to four thermal zones.
Download Datasheets
Head Personality Board S-Class for S-Class
Next step…
Connect with us
We’d love to hear from you
If you are building a new machine or re-engineering a platform, talk to the GIS team. Want a more in-depth plan, or just a sanity check? Get in touch. We can set up a technical review through the form or take your call for a quick question.
