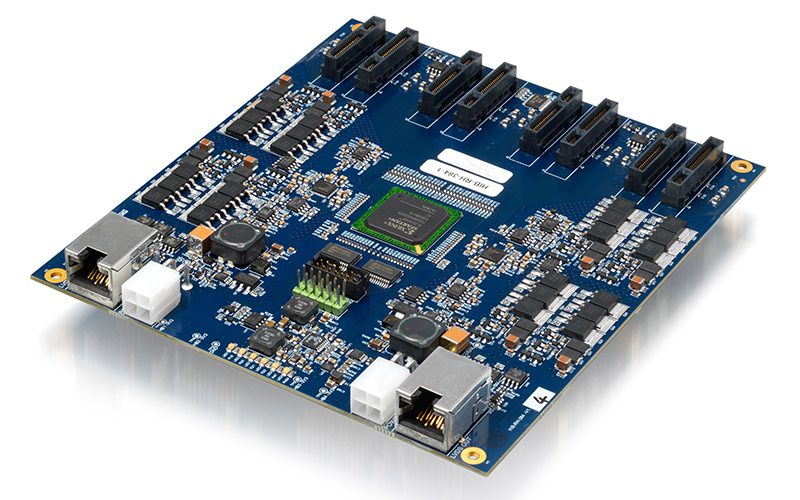

Head Interface Board HIB-RH-384
Printhead Manufacturer
Ricoh
Printhead Family
MH2420 (Gen 4)
Overview
Printhead Variants Supported
Ricoh Gen 4
GIS Legacy Identifier & Product Code
Head Interface Board HIB-RH-384
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 160mm |
| Width | 144.5mm |
| Depth | mm |
| Weight | 195g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 2 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Advanced Features
The RH-384 can support up to 4 x MH2420 (Gen 4) printheads per board reducing system complexity and cost.
Download Datasheets
Head Interface Board HIB-RH-384 for MH2420 (Gen 4)
