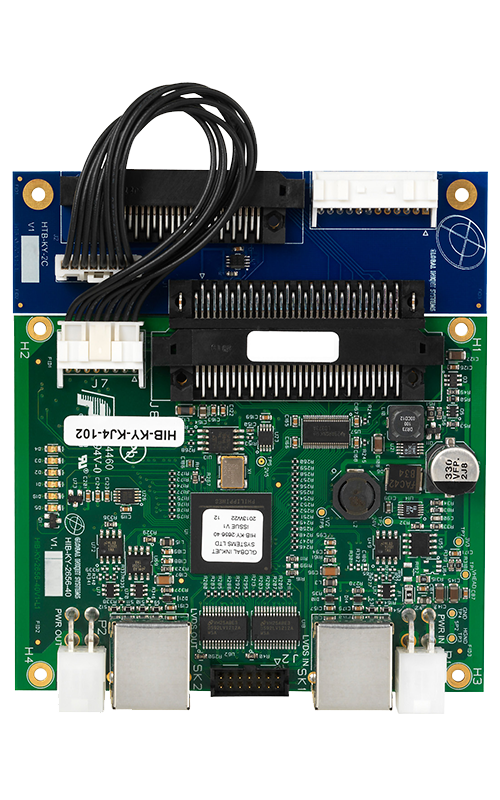

Head Interface Board for Kyocera KJ4A/B-0300
Printhead Manufacturer
Kyocera
Printhead Family
KJ4A/B-0300
Overview
The KY-KJ4A/B-0300 Head Interface Board from GIS provides the communications link between the Kyocera KJ4A/B-0300 600dpi printhead and the GIS Print Manager Board (C8-3). Supports one printhead.
Printhead Variants Supported
KJ4A/B-0300 300dpi 30kHz
GIS Legacy Identifier & Product Code
KY-KJ4A/B-0300
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 80mm |
| Width | 100mm |
| Depth | 14mm |
| Weight | 70g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 2 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Download Datasheets
Head Interface Board for Kyocera KJ4A/B-0300 for KJ4A/B-0300
