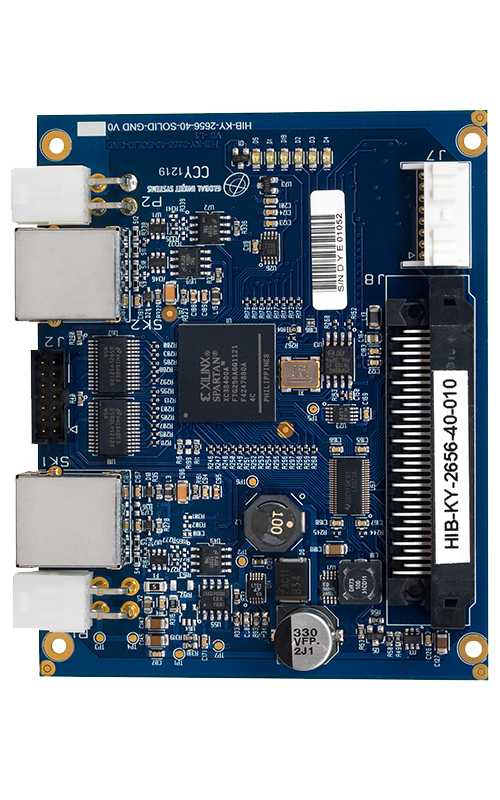

Head Interface Board for Kyocera KJ4A-TA
Printhead Manufacturer
Kyocera
Printhead Family
KJ4A-TA
Overview
The KY-KJ4A-TA Head Interface Board from GIS provides the communications link between the Kyocera KJ4A-TA 600dpi 20kHz printhead and the GIS Print Manager Board (C2 or C8-3). Supports one printhead.
Printhead Variants Supported
KJ4A-TA 600dpi 20kHz UV Ink
GIS Legacy Identifier & Product Code
KY-KJ4A-TA
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 180mm |
| Width | 100mm |
| Depth | 14mm |
| Weight | 70g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 2 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Download Datasheets
Head Interface Board for Kyocera KJ4A-TA for KJ4A-TA
